Unbalanced three-phase treatment device

Features
  • Three-phase unbalanced treatment: The use of advanced power electronics technology Unbalanced three-phase treatment: with the application of advanced power electronics, the three-phase load power consumption can be redistributed, so that the three-phase current can be balanced on the low-voltage side of the transformer. Reactive power compensation: capacitive & inductive reactive compensation better improves the effective output capacity of the distribution network.
  • Harmonic filtering: the main harmonics and conventional (6n±1) sub-harmonics can be effectively eliminated, further improving the safety of distribution system.
  • Improvement on transformer load capacity: settle the single-phase overload, and improve the load capacity.
  • High safety: mini short-circuiter is provided in the module input for overcurrent protection.
  • High power density and small volume: designed module by functional unit is characterized with high power density and small volume.
Applicable Place
  • Rural areas or villages in the city where the single-phase load greatly changes and three-phase load imbalance is likely to incur.

Product Details

DOWNLOAD

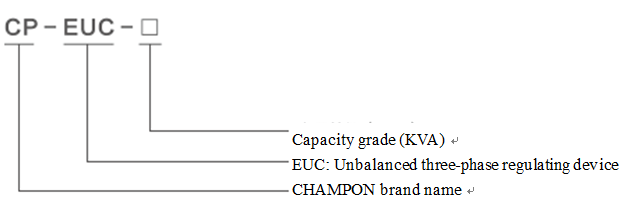

  • Model Description


  • Example: CP-EUC-60 refers to an unbalanced three-phase regulating device of CHAMPON Electric (rated capacity: 60kVA).


  • Features
    • Three-phase unbalanced treatment: The use of advanced power electronics technology Unbalanced three-phase treatment: with the application of advanced power electronics, the three-phase load power consumption can be redistributed, so that the three-phase current can be balanced on the low-voltage side of the transformer. Reactive power compensation: capacitive & inductive reactive compensation better improves the effective output capacity of the distribution network.
    • Harmonic filtering: the main harmonics and conventional (6n±1) sub-harmonics can be effectively eliminated, further improving the safety of distribution system.
    • Improvement on transformer load capacity: settle the single-phase overload, and improve the load capacity.
    • High safety: mini short-circuiter is provided in the module input for overcurrent protection.
    • High power density and small volume: designed module by functional unit is characterized with high power density and small volume.
  • Conditions of Use
    • Operating temperature: -10-45℃
    • Altitude: <1,500m

  • Technical Parameters


    Functional module

    Input voltage

    320V-460V

    Input frequency

    47.5Hz-52.5 Hz

    Wiring method

    3P4L+PE

    Functional module capacity

    25KVA

    30 KVA

    35 KVA

    Functional module quality

    10kg

    11 kg

    12 kg

    Compensation function

    Three-phase unbalance, harmonic and reactive compensation

    Functional module size

    425mm×88mm×400mm

    Complete machine

    Protection grade

    IP54

    IP44

    Noise

    60dB

    65dB

    Equipment capacity

    60 KVA

    90 KVA

    120 KVA

    140 KVA

    Maintenance method

    Pluggable functional modules for easy maintenance
